Freedom® PCK® Metaphyseal Cone System

A stable scaffold for the toughest tibial defects.

3D-printed porous titanium tibial cones engineered for durable cementless fixation, with a stepped external geometry and seven sizes purpose-built to address bone loss in primary and revision total knee arthroplasty.

Freedom® PCK® Metaphyseal Cones

The latest addition to the Freedom® PCK® Revision Knee System.

Engineered for dependable metaphyseal fixation, the PCK® Cones integrate seamlessly with the Freedom® PCK® Revision Knee Tibial Baseplate to deliver a complete, unified solution for even the most demanding revision cases.

3D-Printed Titanium Porous Lattice Stepped Geometry
Cemented & Cementless Seven Sizes

A Platform Built for Surgeons

Restore structural support. Preserve surgical simplicity.

The Freedom® PCK® Metaphyseal Cone System is a 3D-printed titanium solution designed to restore structural support in both primary and revision knee arthroplasty. A highly porous outer lattice promotes long-term cementless fixation, while the stepped external geometry resists subsidence and rotational loosening.

Purpose-built to address tibial bone defects, the system provides a stable foundation that enhances implant support in compromised bone, maintaining the surgical reliability the Freedom® Knee platform is known for.

Key Features

Engineered for reliable revision outcomes.

Six design pillars that work in unison, from biological fixation to surgical efficiency.

3D-Printed Porous Lattice

Ti6Al4V ELI lattice replicates the porosity of cancellous bone — 60% porosity, 470 µm pore size — for durable cementless metaphyseal fixation.

Stepped External Geometry

A stepped outer profile resists subsidence and rotational loosening for dependable support in compromised tibial bone.

Seven Size Options

5 mm M/L increments from 25 mm to 60 mm cover a wide range of defect sizes and complexities.

Keel Relief Slots

Wide relief slots interface with the fins and keel of the Freedom® Knee Tibial Baseplate, enabling independent, optimized positioning without over-constraint.

±15° Rotational Freedom

Intraoperative rotational freedom relative to the tibial baseplate, with laser-etched markings to visualize and dial in cone orientation.

Ream-and-Broach Technique

Bone-preserving ream-and-broach workflow with streamlined, intuitive instrumentation achieves secure metaphyseal engagement.

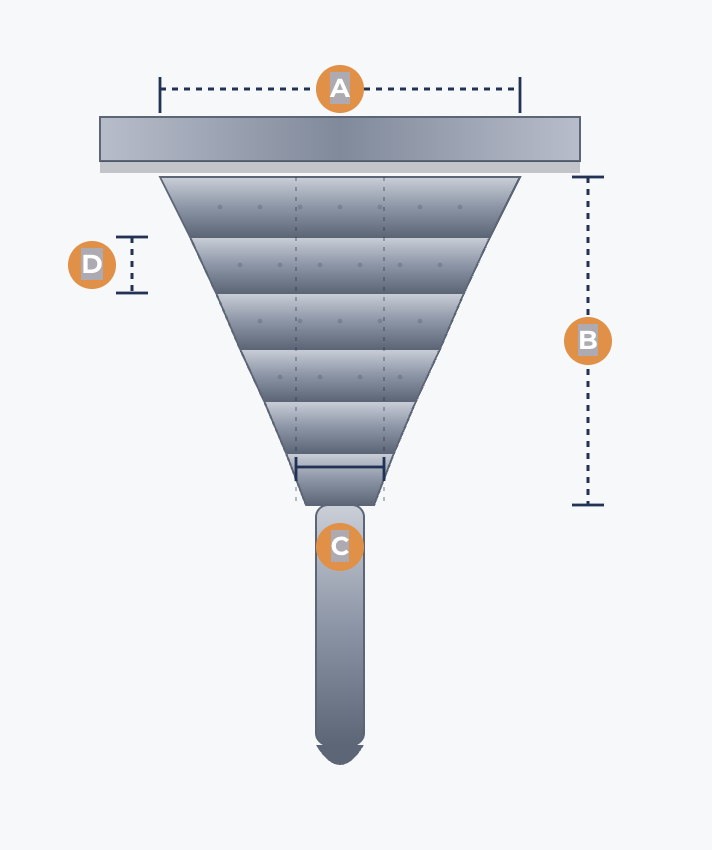

Design at a Glance

Anatomic geometry, reduced to the essentials.

  • A. Outer M/L width. Elliptical design scales larger in the medial-lateral than anterior-posterior, optimizing implant fit and load distribution; seven sizes from 25–60 mm.
  • B. Cone height. Stepped geometry enhances proximal-distal stability and resists subsidence and rotational loosening in compromised tibial bone.
  • C. Inner cavity. A large internal diameter with solid inner cavity accepts a cement mantle and accommodates larger stem options for added construct stability.
  • D. Stepped external geometry. Each step is wrapped in a 3D-printed porous scaffold — approximately 1 mm thick, 60% porosity, 470 µm pore size — that replicates cancellous bone for biological fixation.

“PCK® Cones complete our revision knee offering, giving surgeons the stable metaphyseal scaffold they need for addressing bone defects, while maintaining the surgical simplicity and reliability the Freedom® Knee platform is known for.”

— Farzin Khaghani, Chief Commercial Officer, Maxx Orthopedics

System Specifications

Sizing and scaffold built for revision.

Seven cone sizes in 5 mm M/L increments, manufactured from Ti6Al4V ELI titanium alloy.

Cone Sizing (mm)

Cone Size A B C
25 mm 27.0 29.0 16.2
30 mm 32.0 30.0 19.1
35 mm 37.0 31.0 19.3
40 mm 42.0 32.0 19.6
45 mm 47.0 33.0 19.9
50 mm 52.0 34.0 20.0
60 mm 62.0 35.0 20.0
Since this table has

Porous Lattice Properties

Porosity 60%
Pore Size 470 µm
Lattice Thickness 800 ± 25 µm
Material Ti6Al4V ELI
Inner Cavity (D) 30.0 mm
Rotational Freedom ±15°
For complete instructions for use, indications, contraindications, warnings, and precautions, please contact your Maxx Orthopedics representative.
