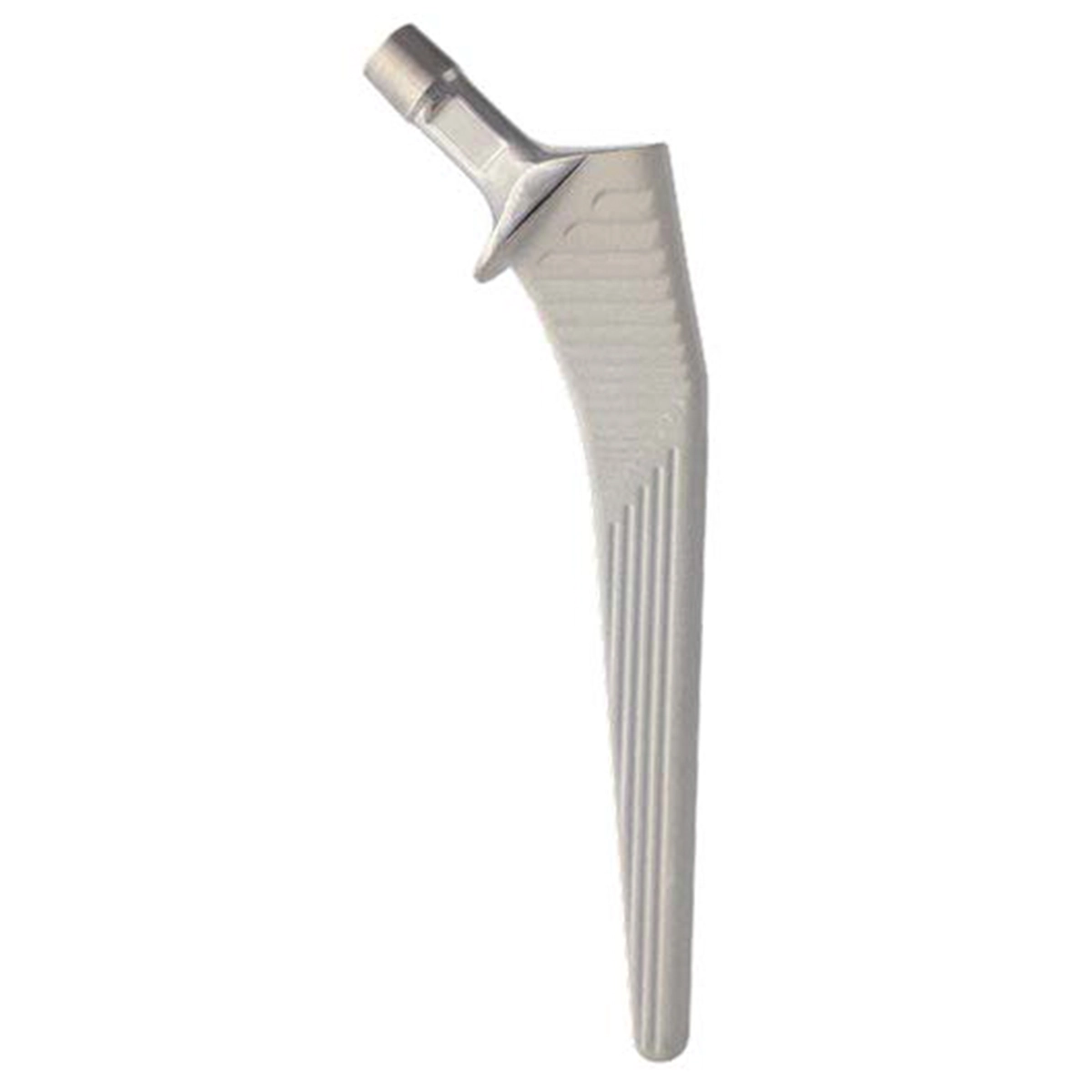

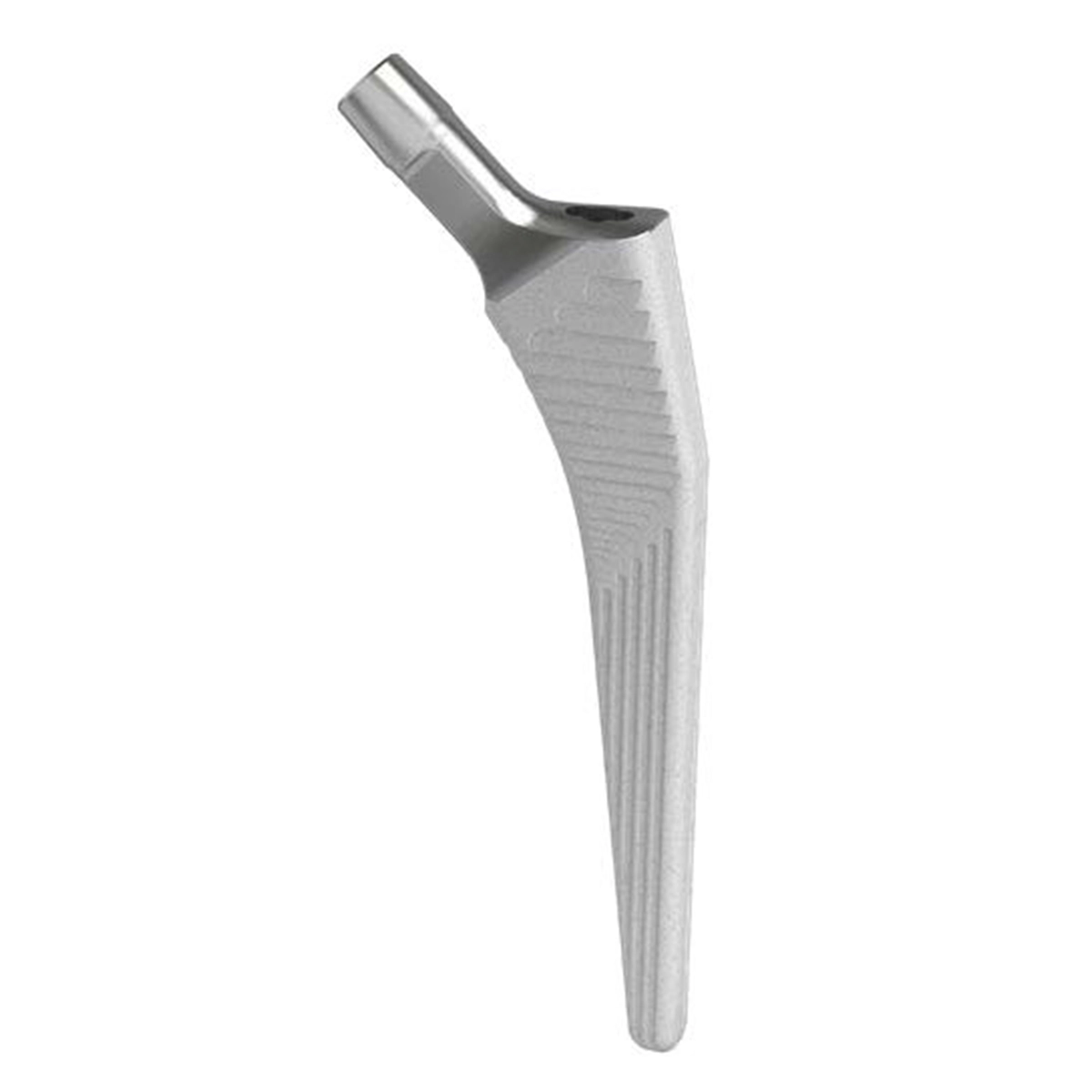

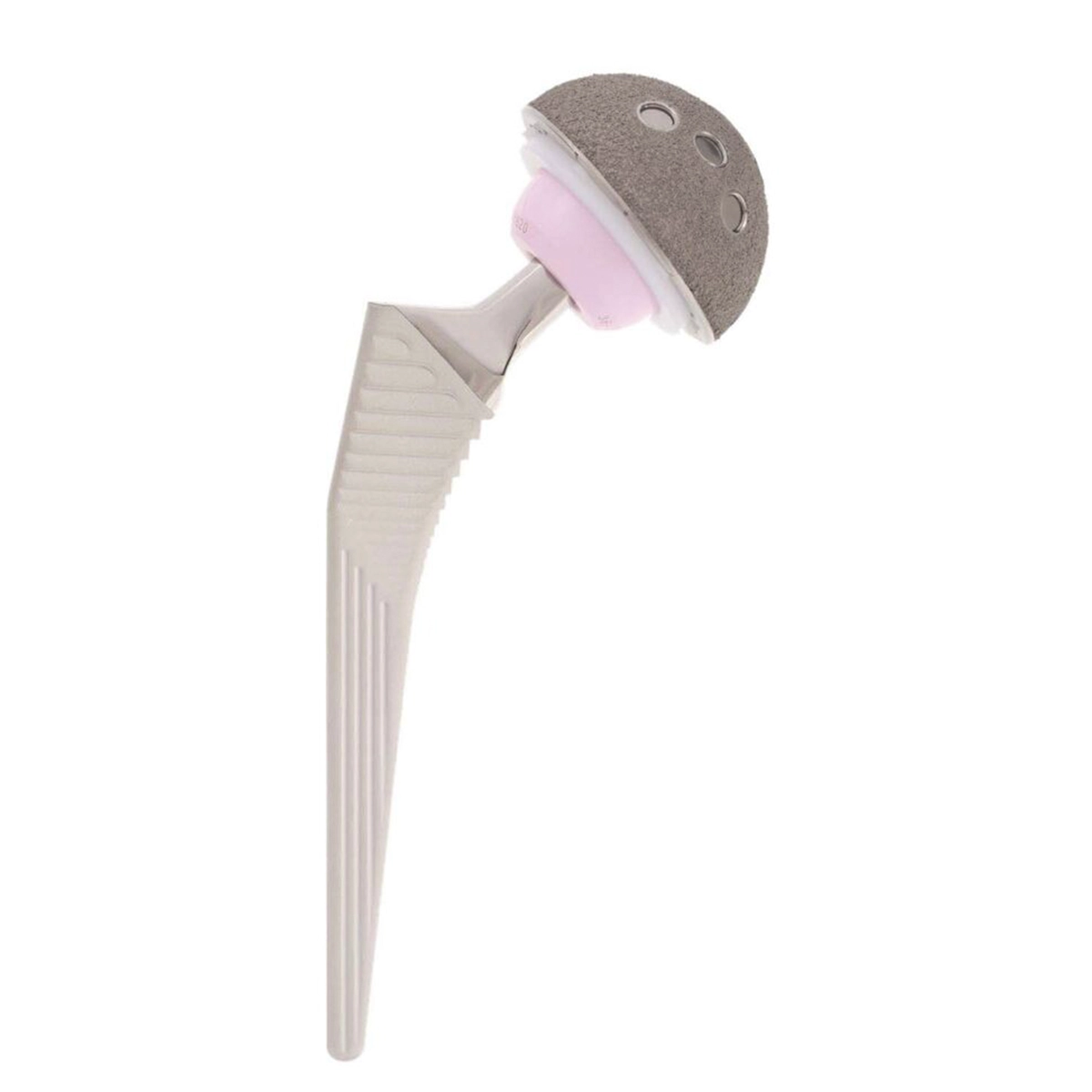

Libertas® HA Uncemented Stem

Biological Fixation. Mechanical Stability. Engineered for Long-Term Performance.

The Libertas® HA Stem is designed to deliver immediate mechanical stability followed by durable biological integration. Built on a titanium alloy platform and enhanced with plasma-sprayed hydroxyapatite, this stem is engineered to optimize cancellous bone compression while supporting long-term fixation.

It is a fixation strategy built around bone response.

.custom-tabs-nav { display:flex; justify-content:center; gap:40px; margin-bottom:40px; } .custom-tabs-nav button { background:none; border:none; font-size:20px; font-weight:600; color:#17345f; cursor:pointer; padding:10px 0; border-bottom:3px solid transparent; } .custom-tabs-nav button.active { border-bottom:3px solid #f58220; } .tab-panel { display:none; } .tab-panel.active { display:block; } @media only screen and (max-width: 768px) { .custom-tabs-nav { flex-direction: column; gap: 0; } .custom-tabs-nav button {color:white !important;background-color:#1f3153; width: 100%; display: flex; justify-content: space-between; align-items: center; padding: 18px 20px; text-align: left; border-bottom: 1px solid rgba(255,255,255,0.15); } .custom-tabs-nav button::after { content: "\f078"; /* Font Awesome chevron-down */ font-family: "Font Awesome 5 Free"; font-weight: 900; color: white; margin-left: auto; } .custom-tabs-nav button:last-child { border-bottom: none; } }
Why Hydroxyapatite (HA)

Hydroxyapatite is chemically similar to the mineral component of human bone. When applied to a titanium substrate, it provides a biologically active surface that encourages rapid bone ongrowth.

The Libertas HA Stem utilizes Hydroxyapatite coating, creating a surface designed to accelerate biological fixation while maintaining strong mechanical adhesion to the implant.

Coating specifications include:
  • Surface roughness: Rt > 30 μm
  • Coating thickness: 150 ± 40 μm
  • Adhesion strength: ≥ 15 MPa
  • Crystallinity: ≥ 60%
Design Features That Support Fixation

The HA coating works in combination with deliberate stem geometry to support mechanical stability at the time of implantation.

  • Trapezoidal cross section designed for initial stability
  • Rectangular distal geometry designed for rotational stability
  • Vertical grooves to enhance axial and rotational fixation
  • Step design to maximize compression loading in cancellous bone
  • Lateral shoulder designed for ease of insertion
  • Tapered neck to increase range of motion
Implant Options

The Libertas HA Stem is available in:

3 Offset Options to facilitate restoration of hip biomechanics

33 stem sizes to accommodate a wide range of femoral anatomies

Collared and collarless configurations
