Freedom® Porous Tibial Baseplate

A 3D-printed cementless tibia, engineered for modern TKA.

Additively manufactured Ti6Al4V with a fully interconnected porous lattice, an anatomic asymmetric footprint, and a bone-preserving broach-only keel. Resulting in a complete cementless tibiofemoral solution within the Freedom® Knee platform.

Freedom® Porous Knee System

A modern cementless solution for the Freedom® Total Knee System.

The Freedom® Porous Tibial Baseplate features advanced 3D-printed porous technology engineered around efficiency and designed to optimize fixation. Paired with the porous CoCrMo femoral component, it gives surgeons a complete cementless tibiofemoral solution.

3D-Printed Ti6Al4V Cementless Asymmetric Anatomic
Broach-Only Keel 8 Sizes

A Platform Built for Surgeons

Built for fixation. Built for efficiency.

The Freedom® Porous Tibial Baseplate is engineered around efficiency and designed to optimize fixation through an advanced 3D-printed porous structure. With the introduction of this baseplate, the Freedom® Total Knee System offers a cementless tibiofemoral solution — a modern, bone-preserving option for younger and more active patients.

Anatomic asymmetric geometry maximizes proximal tibial coverage, while a broach-only keel and controlled peripheral press-fit deliver immediate stability. The fully interconnected lattice does the long-term work, promoting osseointegration and durable biological fixation.

Key Features

Six design pillars working in unison.

From immediate press-fit stability to long-term cementless fixation.

3D-Printed Porous Lattice

Fully interconnected Ti6Al4V lattice with 61% porosity, 470 µm pore size, and 800 µm coating thickness — engineered to promote vascularized bone ingrowth and osseointegration.

Anatomic Asymmetric Design

Anatomic Left and Right configurations across 8 sizes (63–84 mm M/L) maximize proximal tibial coverage and engage cortical bone medially and posteromedially where load transfer is highest.

Bone-Preserving Broach-Only Keel

Three discrete keel geometries scale with baseplate size to maximize metaphyseal bone engagement — a one-step preparation that simplifies workflow and preserves bone.

Optimized Press-Fit Fixation

0.5 mm peripheral press-fit relative to the broach generates compressive engagement with cancellous bone, providing immediate implant stability while ingrowth develops.

OR-Efficient Workflow

Compatible with the Maxx QRS® single-tray instrument platform. Magnetic quick-connect broach handle and minimal fixation features streamline OR workflow for ASC and outpatient TKA.

Complete Cementless System

Paired with a CR porous CoCrMo femoral component (60% porosity, 280 µm pore, 1,000 µm coating), the system delivers a unified cementless tibiofemoral construct.

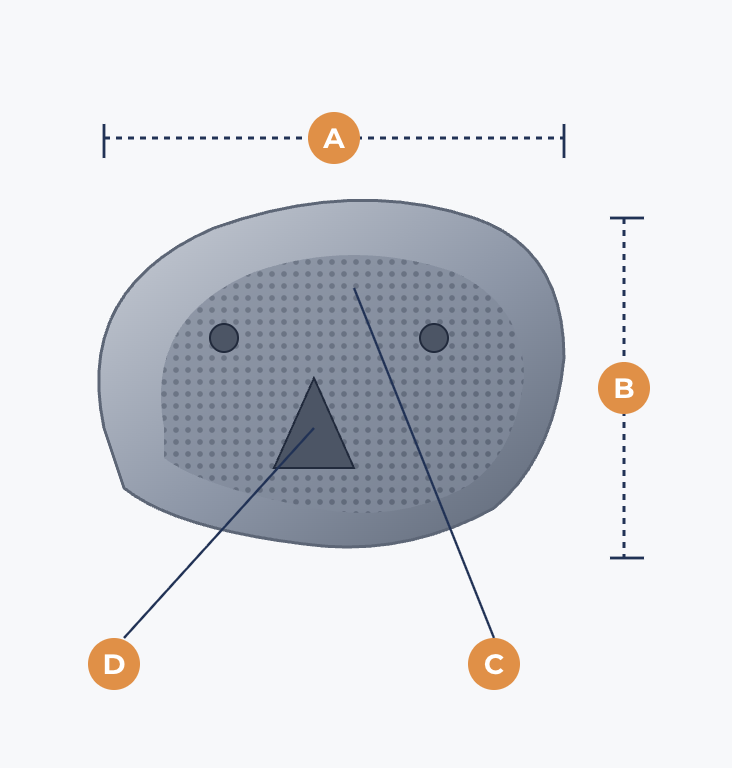

Design at a Glance

Anatomic geometry, intentional fixation.

  • A. Medial-lateral width. Eight asymmetric sizes from 63–84 mm M/L deliver maximized cortical rim coverage without compromising rotational alignment.
  • B. Anterior-posterior depth. Anatomic A/P scales from 46–62 mm; left and right configurations engage cortical bone medially and posteromedially where loads are highest.
  • C. Porous lattice. Fully interconnected, additively manufactured Ti6Al4V structure — 61% porosity, 470 µm pores, 800 µm coating — in the published sweet spot for vascularized bone ingrowth.
  • D. Broach-only keel & pegs. Three scaling keel geometries with a 0.5 mm peripheral press-fit drive primary stability; two pegs supplement rotational fixation during early healing.

“With the introduction of our Porous Tibial Baseplate, we are expanding the capabilities of the Freedom® Total Knee System to address the needs of surgeons and their patients. This latest innovation reflects our commitment to advancing cementless knee solutions.”

— Farzin Khaghani, Chief Commercial Officer, Maxx Orthopedics

System Specifications

Sizing and scaffold built for the modern OR.

Eight anatomic baseplate sizes paired with eight CR femoral sizes for a complete cementless construct.

Tibial Baseplate Sizing

Size A/P M/L
Size 1 46 mm 63 mm
Size 2 46 mm 67 mm
Size 3 48 mm 70 mm
Size 4 53 mm 72 mm
Size 5 55 mm 75 mm
Size 6 58 mm 79 mm
Size 7 60 mm 82 mm
Size 8 62 mm 84 mm

Femoral Component Sizing

Size A/P M/L
Size A 51 mm 54 mm
Size B 54 mm 58 mm
Size C 58 mm 62 mm
Size D 60 mm 64 mm
Size E 62 mm 66 mm
Size F 66 mm 70 mm
Size G 70 mm 74 mm
Size H 74 mm 78 mm

Femoral Component Sizing

Material Additively manufactured Ti6Al4V
Porosity 61%
Pore Size 470 μm
Coating Thickness 800 ± 25 μm
Keel Geometries 3 (scale with size)
Peripheral Press-Fit 0.5 mm relative to broach

Femoral Component Sizing

Material CoCrMo with sintered bead coating
Porosity 60%
Pore Size 280 μm
Coating Thickness 1,000 ± 25 μm
Design Cruciate Retaining, Anatomic L/R
Layers Three-layer sintered bead structure
For complete instructions for use, indications, contraindications, warnings, and precautions, please contact your Maxx Orthopedics representative.

News

Latest Freedom® Porous Knee Announcements

The most recent press releases and updates from Maxx Orthopedics.

FEB

19

2025

Maxx Orthopedics Receives FDA 510(k) Clearance of 3D-Printed Porous Titanium Tibial Baseplate for the Freedom® Total Knee System

The new asymmetrical Porous Tibial Baseplate adds a 3D-printed cementless tibial option to the Freedom® Total Knee System, completing a cementless tibiofemoral solution focused on immediate fixation and long-term osseointegration.

Get In Touch

Bring the Freedom® Porous Knee System to your OR.

Connect with a Maxx Orthopedics representative to discuss the Freedom® Porous Tibial Baseplate, request a sales sheet, or schedule a product evaluation.
